OREE_BLDC_motor.pdf |

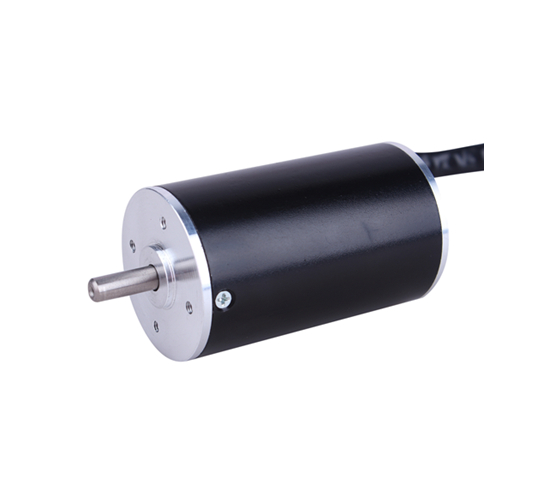

Quick Detail:
General Specifications:
| Item | Specification |
| Winding Type | Star/Delta |
| Hall effect angle | 120 degree electric angle |
| Shaft runout | 0.03mm |
| Radial play | 0.03mm/50g |
| Axial play | 0.03mm/50g |
| Max radial force | 35N/20mm from the flange |
| Max axial force | 30N |
| Insulation class | Class B |
| IP class | IP40 |
| Dielectric strength | 500VDC for one minute |
| Insulation resistance | 100MΩmin 500VDC |
Electric Connection:
| Lead NO. | Lead color | Lead Gauge | Function | Description |
| 1 | Red | UL3266/28AWG | VCC +5VDC | supply voltage for hall sensors |
| 2 | Black | GND | ground for hall sensors | |
| 3 | Yellow | HALL A | signal of hall A | |
| 4 | Green | HALL B | signal of hall B | |
| 5 | Blue | HALL C | signal of hall C | |
| 1 | Yellow | UL3266/22AWG | PHASE U | motor phase U |
| 2 | Green | PHASE V | motor phase V | |
| 3 | Blue | PHASE W | motor phase W |

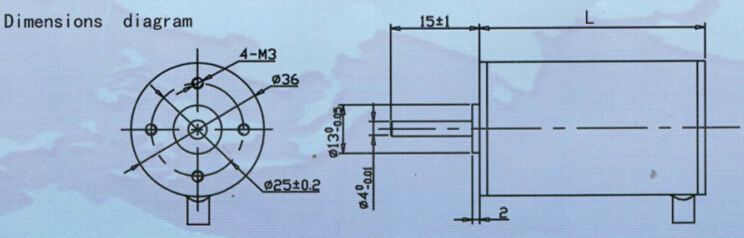

Electrical Specification:
| model | phase NO. | voltage （VDC） | Speed （RPM） | rated torque (g.cm） | rated power（W） | motor weight（kg） | motor length（mm） |
| 36YBLDC-001A | 3 | 12 | 4000 | 120 | 5 | 0.15 | 40 |
| 36YBLDC-002A | 3 | 24 | 5000 | 190 | 10 | 0.15 | 40 |
| 36YBLDC-003A | 3 | 12 | 6000 | 120 | 8 | 0.18 | 50 |
| 36YBLDC-004A | 3 | 24 | 6000 | 230 | 15 | 0.18 | 50 |
| 36YBLDC-005A | 3 | 12 | 8000 | 240 | 20 | 0.22 | 60 |
| 36YBLDC-006A | 3 | 24 | 8000 | 300 | 25 | 0.22 | 60 |
