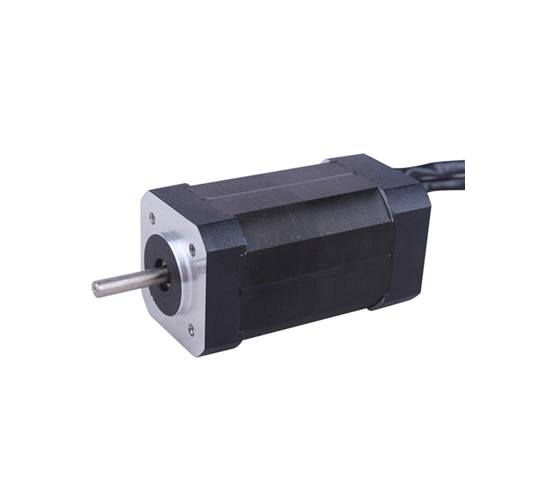

Quick Detail:
| 项目 Item | 规范 Specification |
| 接线方式 Widing type | 星形或三角形 Star/Delta |
| 电角度 Hall effect angle | 120 degree electrice angle |
| 轴跳动 Shaft runout | 0.025mm |
| 径向窜动 Radial play | 0.02mm/450g |
| 轴向窜动 End play | 0.08mm/450g |
| 最大径向力 Max radial force | 法兰方向 28N/20mm from the flange |
| 最大 轴向力 Max axial force | 10N |
| 绝缘等级 Insulation class | Class B |
| 防护等级 IP class | IP40 |
| 电气强度 Dielectric strength | 500VDC for one minute |
| 绝缘电阻 Insulation resistance | 100MΩmin 500VDC |
技术参数 （Electrical Specifications）
| 型号 Model | 额定电压 （VDC） Rated Voltage | 额定电流 （A） Rated Current | 额定功率 （W） Rated Power | 额定力矩（N.m） Rated Torque | 峰值力矩（N.m） Peak Torque | 额定转速 （rpm） Rated Speed | 机身长（mm） Length | 重量 （kg） Mass |
| 42BL50-230 | 24 | 1.8 | 31 | 0.1 | 0.3 | 3000 | 51 | 0.35 |
| 42BL70-230 | 24 | 3.4 | 62 | 0.2 | 0.6 | 3000 | 71 | 0.55 |
| 42BL90-230 | 24 | 5.2 | 94 | 0.3 | 0.9 | 3000 | 91 | 0.65 |
| 42BL50-340 | 36 | 1.6 | 42 | 0.1 | 0.3 | 4000 | 51 | 0.35 |
| 42BL70-340 | 36 | 3.1 | 84 | 0.2 | 0.6 | 4000 | 71 | 0.55 |
| 42BL90-340 | 36 | 4.6 | 125 | 0.3 | 0.9 | 4000 | 91 | 0.65 |

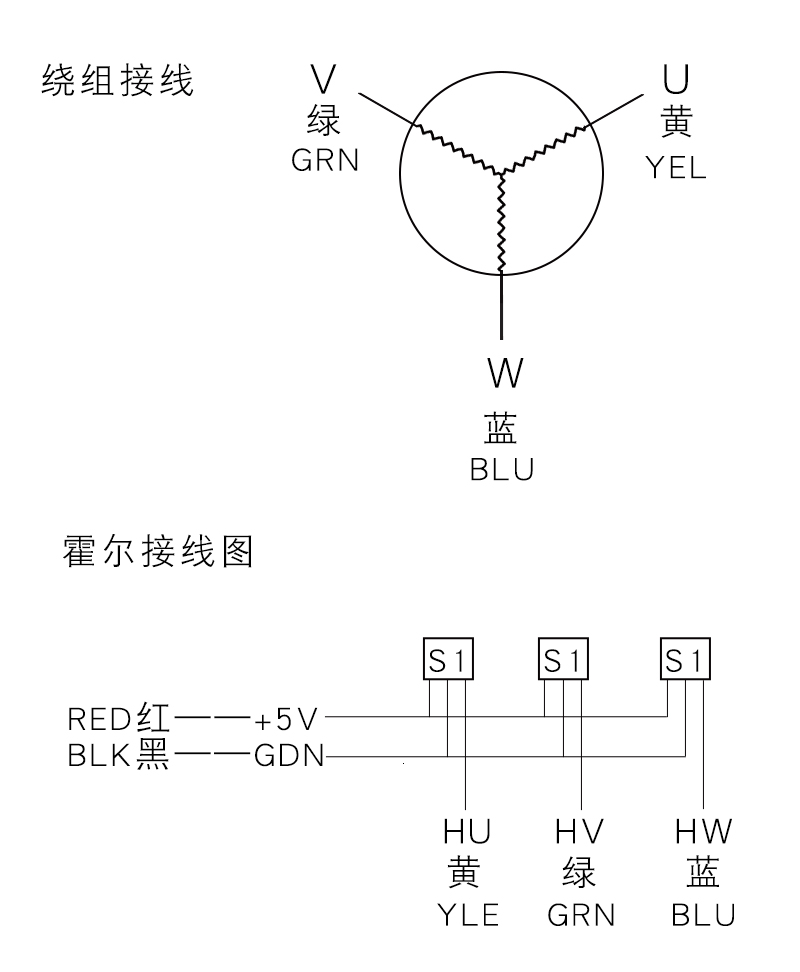

接线说明（Electrical Connection）
| 序号 Lead No. | 引线颜色Lead color | 线规 Lead gauge | 功能 Function | 详细描述 Description | ||||
| 1 | Red/红 | UL3266/28AWG | VCC+5VDC | SUPPLY VOLTAGE FOR HALL SENSORS | ||||
| 2 | Black/黑 | GND | GROUND FOR HALL SENSORS | |||||
| 3 | Yellow/黄 | HALL A | SIGNAL OF HALL A | |||||
| 4 | Green/绿 | HALL B | SIGNAL OF HALL B | |||||
| 5 | Blue蓝 | UL3266/22AWG | HALL C | SIGNAL OF HALL C | ||||
| 1 | Yellow/黄 | PHASE U | MOTOR PHASE U | |||||
| 2 | Green/绿 | PHASE V | MOTOR PHASE V | |||||
| 3 | Blue蓝 | PHASE W | MOTOR PHASE W | |||||

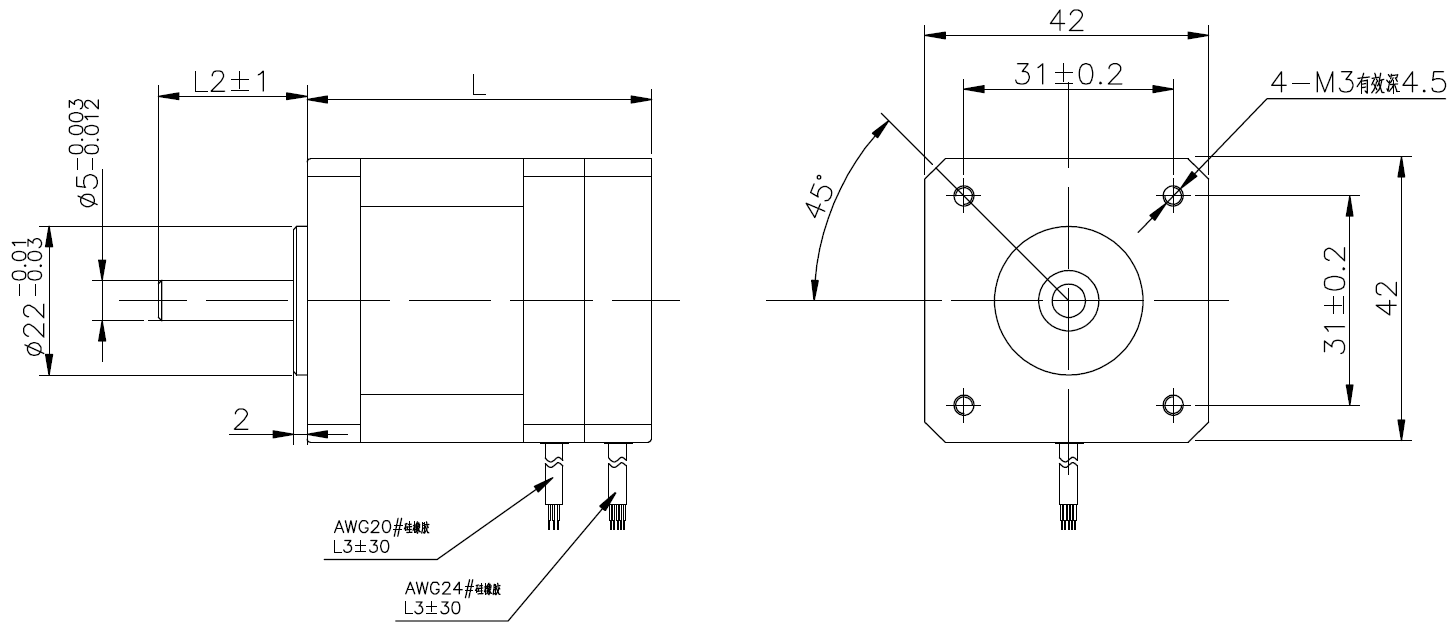

外形图（Dimensions）（单位/Unit： mm）
