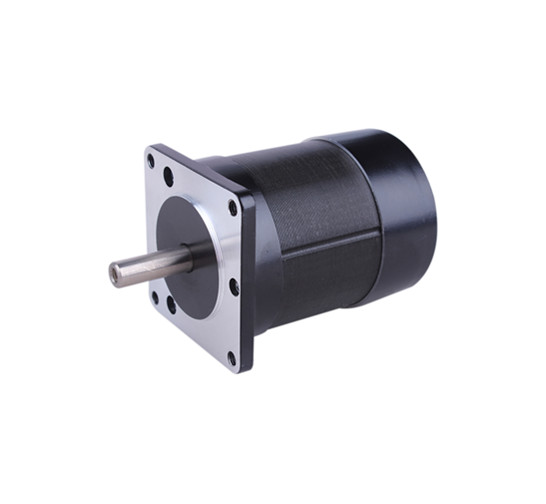

OREE_BLDC_motor.pdf |
| 项目 Item | 规范 Specification |
| 接线方式 Widing type | 星形或三角形 Star/Delta |
| 电角度 Hall effect angle | 120 degree electrice angle |
| 轴跳动 Shaft runout | 0.025mm |
| 径向窜动 Radial play | 0.02mm/450g |
| 轴向窜动 End play | 0.08mm/450g |
| 最大径向力 Max radial force | 法兰方向 75N/20mm from the flange |
| 最大 轴向力 Max axial force | 15N |
| 绝缘等级 Insulation class | Class B |
| 防护等级 IP class | IP40 |
| 电气强度 Dielectric strength | 500VDC for one minute |
| 绝缘电阻 Insulation resistance | 100MΩmin 500VDC |
技术参数 （Electrical Specifications）
| 型号 Model |
额定电压 （VDC） Rated Voltage |
额定电流（A） Rated Current |
额定功率（W） Rated Power |
额定力矩（N.m） Rated Torque | 峰值力矩（N.m） Peak Torque |
额定转速 （rpm） Rated Speed |
机身 长（mm） Length | 重量（kg） Mass |
| 57BLY50-230 | 24 | 3.4 | 62 | 0.2 | 0.6 | 3000 | 54 | 0.35 |
| 57BLY70-230 | 24 | 6.9 | 125 | 0.4 | 1.2 | 3000 | 74 | 0.5 |
| 57BLY90-230 | 24 | 10.4 | 188 | 0.6 | 1.8 | 3000 | 94 | 0.95 |
| 57BLY110-230 | 24 | 13.9 | 251 | 0.8 | 2.4 | 3000 | 114 | 1.25 |
| 57BLY50-340 | 36 | 3.1 | 84 | 0.2 | 0.6 | 4000 | 54 | 0.35 |
| 57BLY70-340 | 36 | 6.2 | 167 | 0.4 | 1.2 | 4000 | 74 | 0.5 |
| 57BLY90-340 | 36 | 9.3 | 251 | 0.6 | 1.8 | 4000 | 94 | 0.95 |
| 57BLY110-340 | 36 | 12.4 | 335 | 0.8 | 2.4 | 4000 | 114 | 1.25 |

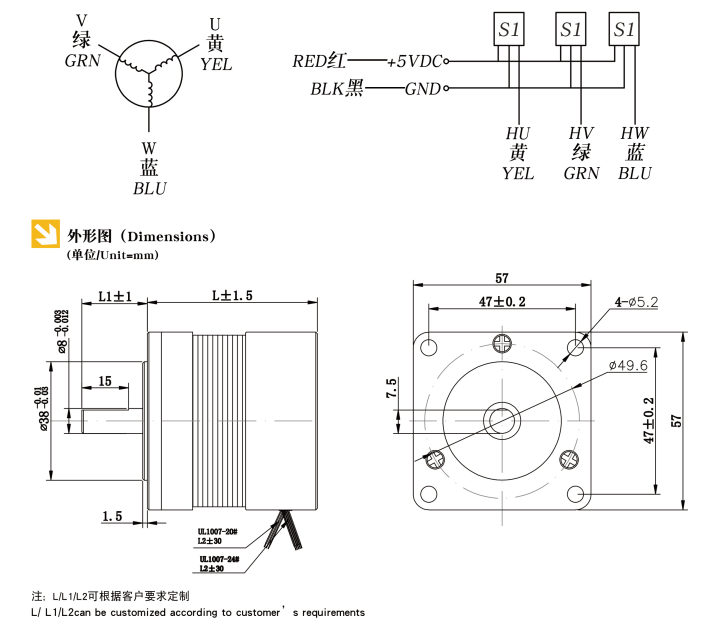

接线说明（Electrical Connection）
| 序号 Lead No. | 引线颜色Lead color | 线规 Lead gauge | 功能 Function | 详细描述 Description | ||||
| 1 | Red/红 | UL3266/28AWG | VCC+5VDC | SUPPLY VOLTAGE FOR HALL SENSORS | ||||
| 2 | Black/黑 | GND | GROUND FOR HALL SENSORS | |||||
| 3 | Yellow/黄 | HALL A | SIGNAL OF HALL A | |||||
| 4 | Green/绿 | HALL B | SIGNAL OF HALL B | |||||
| 5 | Blue蓝 | UL3266/22AWG | HALL C | SIGNAL OF HALL C | ||||
| 1 | Yellow/黄 | PHASE U | MOTOR PHASE U | |||||
| 2 | Green/绿 | PHASE V | MOTOR PHASE V | |||||
| 3 | Blue蓝 | PHASE W | MOTOR PHASE W | |||||
