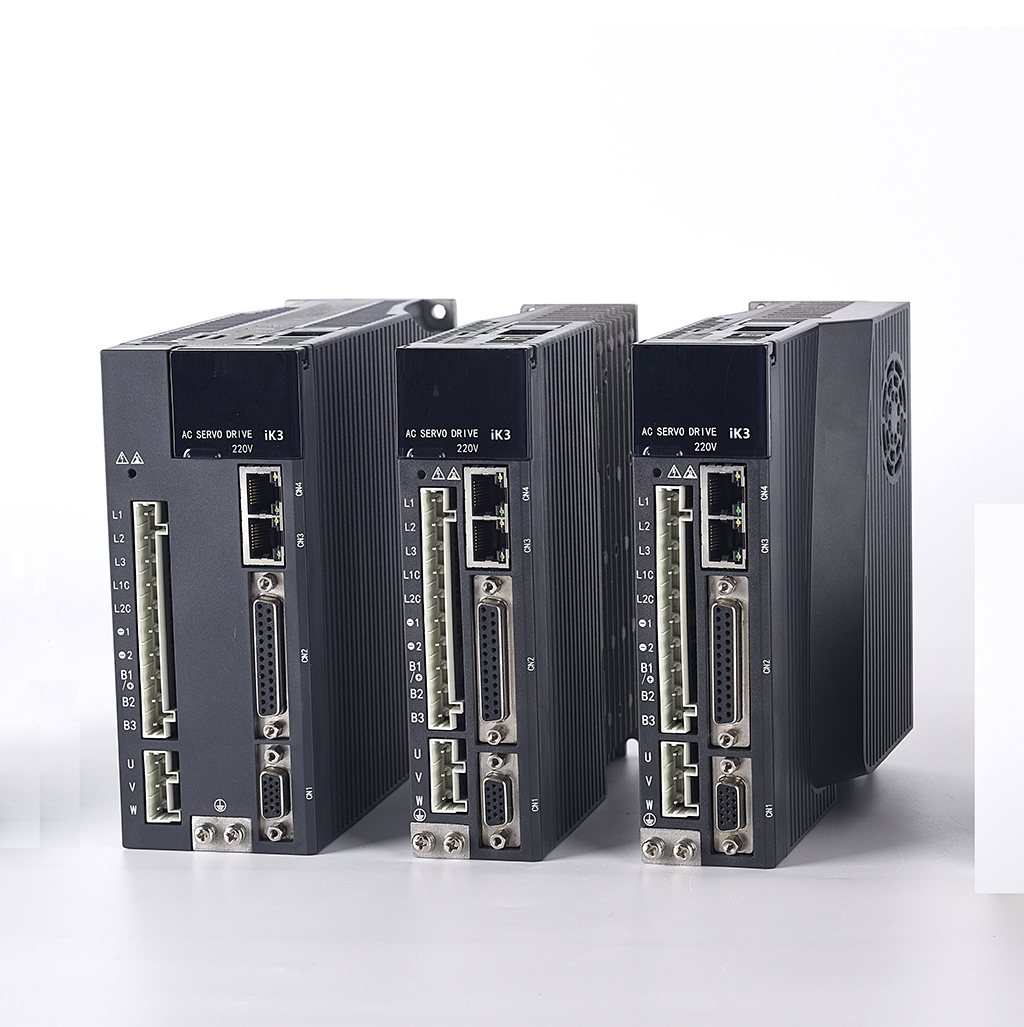

Universal Bus Type:iK3 Series Servo Driver



Power range: 50W ~ 5kW



Input voltage: 1 single-phase or three-phase 220VAC (-15 ~+10%), 50-60HZ



Control mode: position control, speed control, moment control, bus control



Encoder type: 2500 line incremental photoelectric encoder (dart/dart), 17bit/20bit/23bit absolute value encoder



Communication: EtherCAT, POWERLINK, CANopen



Input and Output Points: IO programmable, supporting positive and negative logic settings and functional relocation, 5-way input support 16 functional configurations, 3-way output support 12 functional configurations



Monitoring function: Provide 16 kinds of status monitoring such as position, speed, current, voltage, input and output.
